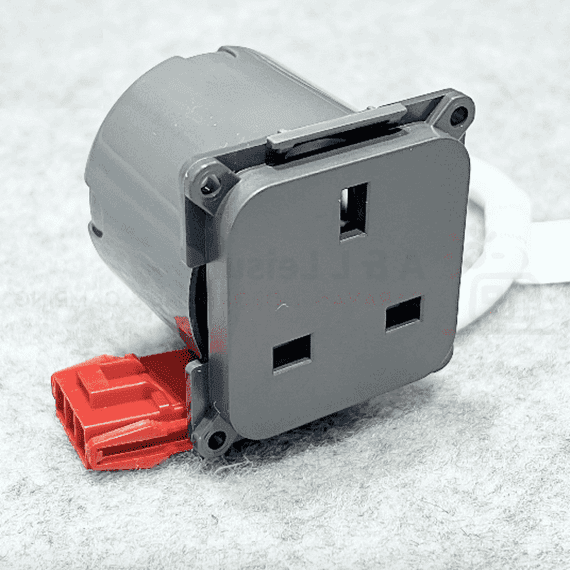

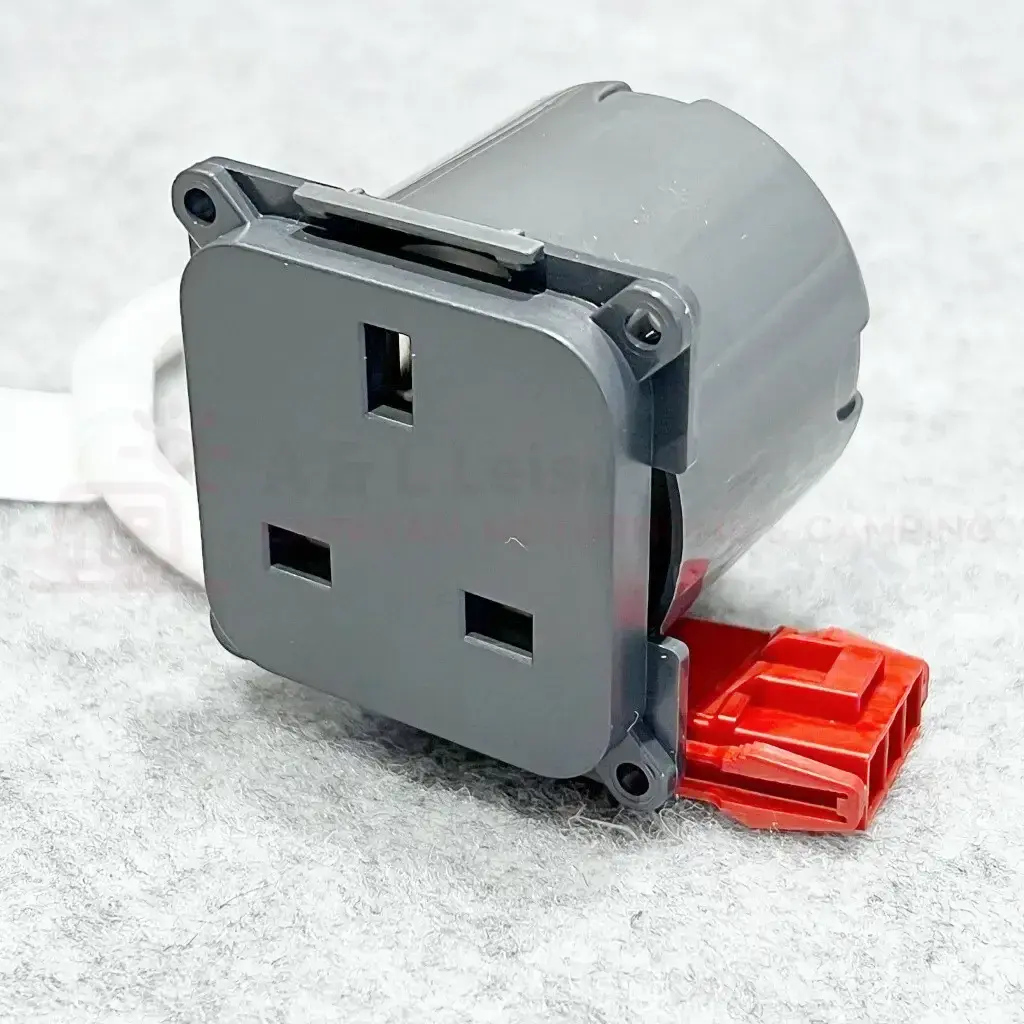

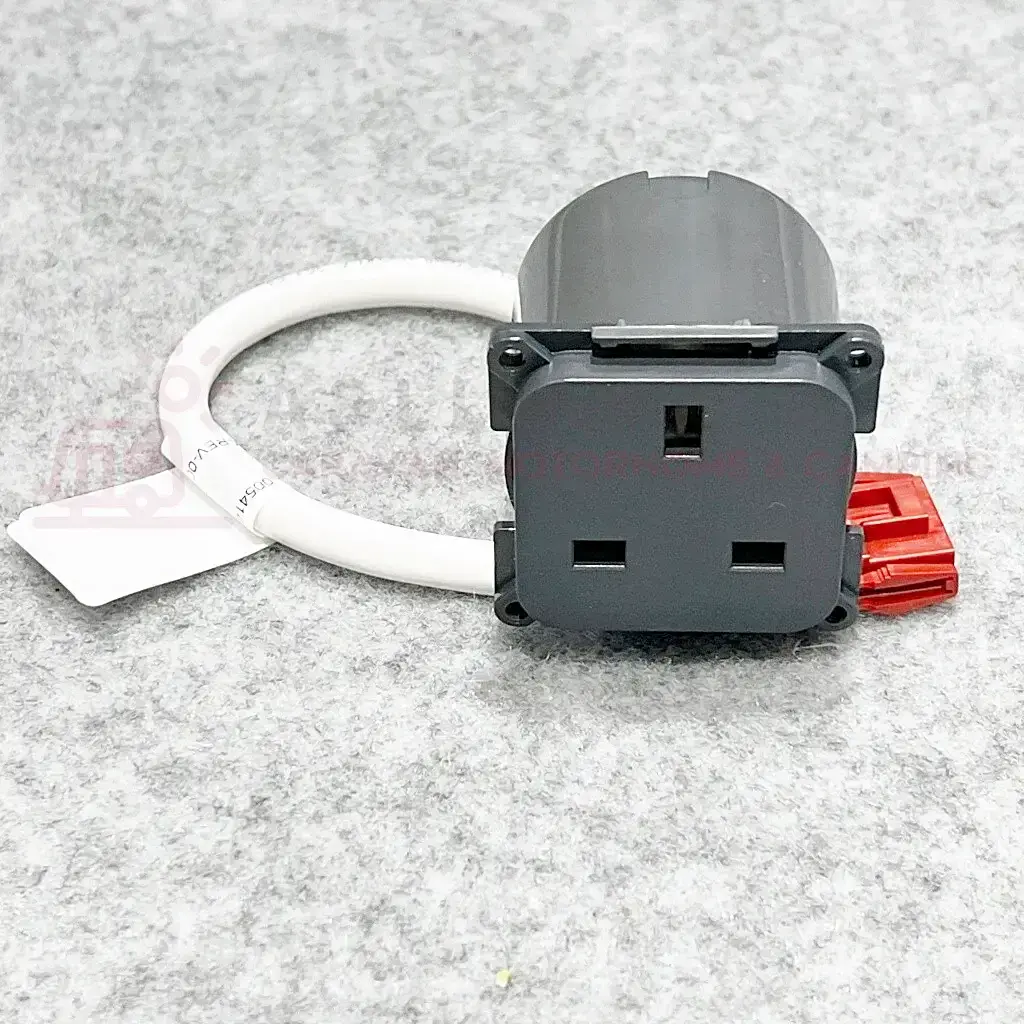

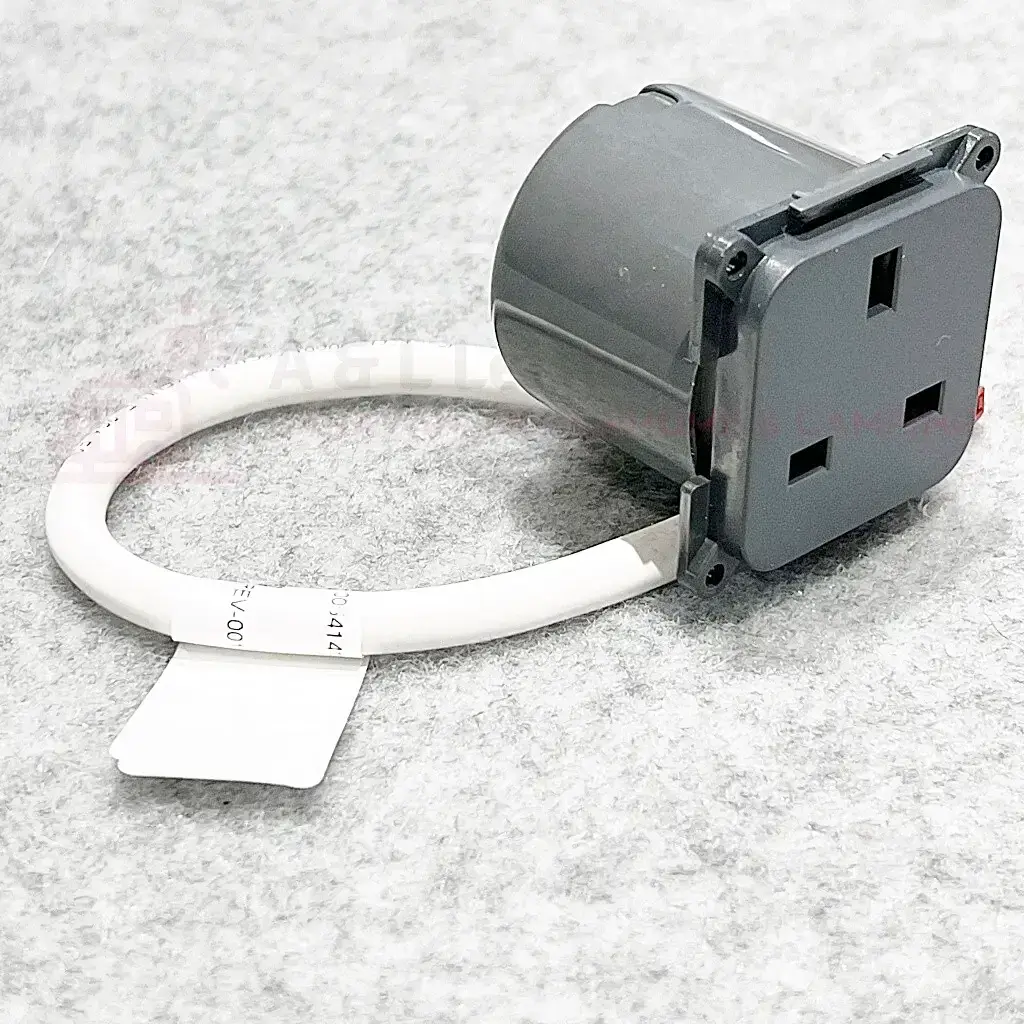

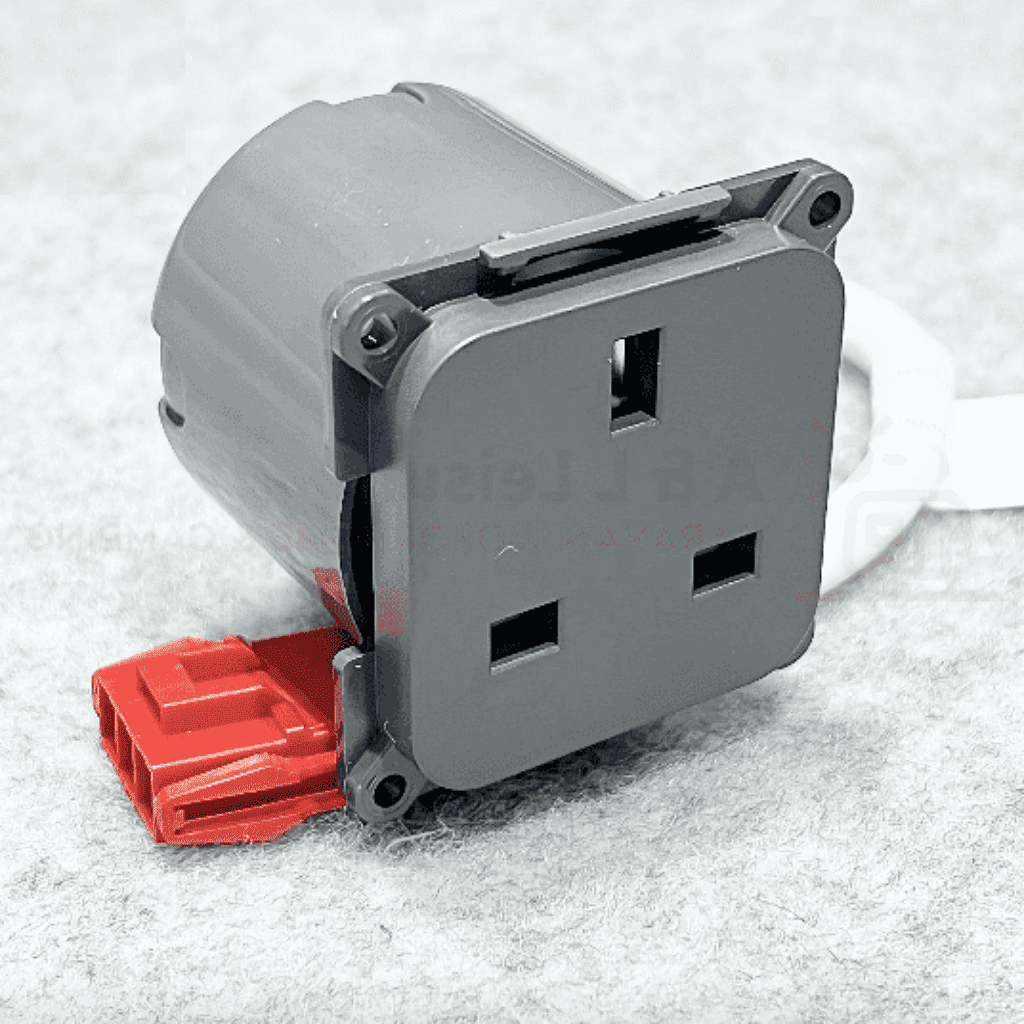

C-Line Pre-wired 230V Socket

The C-Line pre-wired 230V socket is a plug-and-play 13A mains socket designed for easy installation in caravans, motorhomes, and campervan conversions. It is specifically engineered to integrate with the BCA Powerpart PDU harness kit and wiring systems, eliminating the need for manual wiring.

C-Line is a modular range of a wide variety of electrical components and facias that mix and match to suit whatever your requirements are. They are interchangeable with CBE Style Facias, etc. Fitted in a wide range of Caravans & Motorhomes including Bailey, Elddis, Adria & Coachman.

Key Specifications

• Voltage & Current: 230V, 13 Amp, 3-pin UK socket.

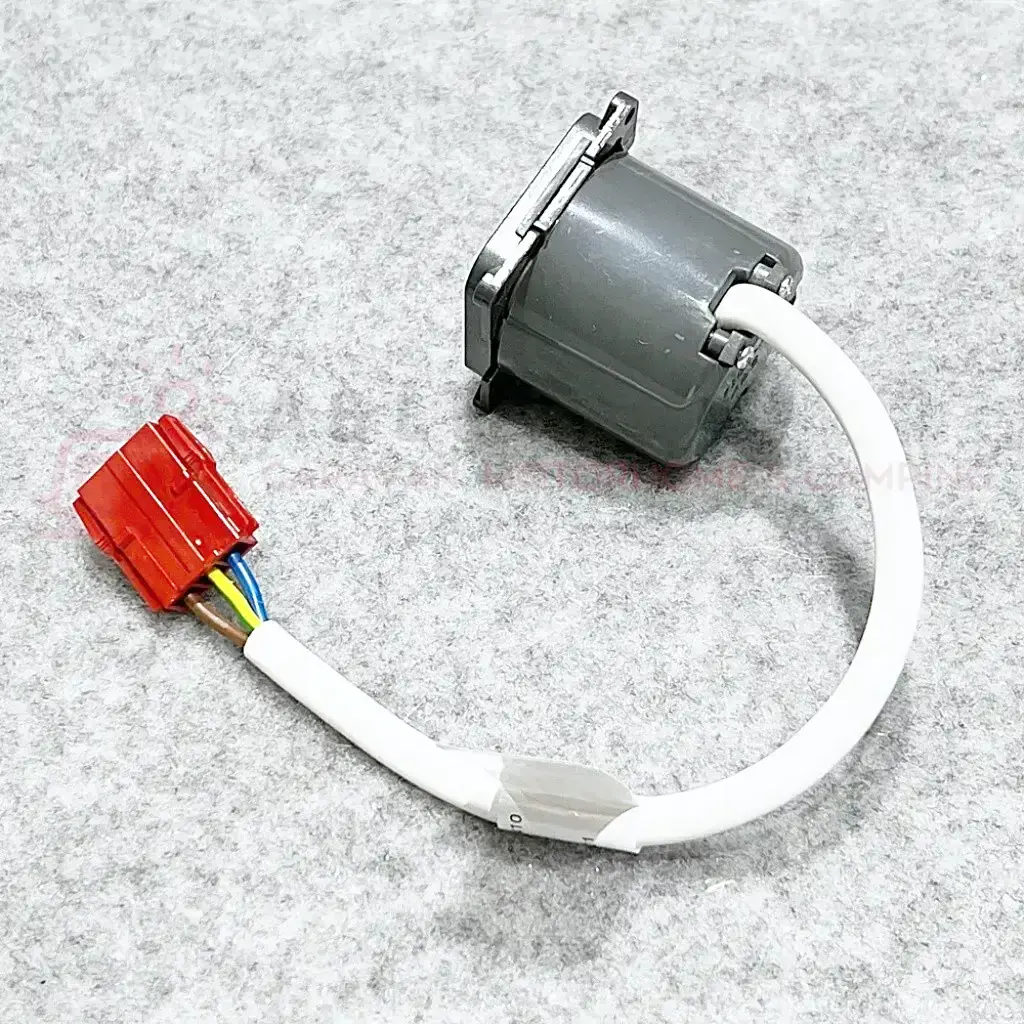

• Connection: Pre-wired with a wire tail (approx. 22cm) and a red 3-pin push-fit quick connector.
• Mounting: Includes a circular recessed back box and features four moulded screw holes for faceplate mounting.
• Dimensions: The module itself is 45 x 45 mm
• Installation Depth: Requires a minimum clearance of 28 mm to 47mm behind the mounting surface to accommodate cables and connectors.
• Material: Constructed from high-quality ABS plastic.
• Certification: Complies with BS1363 standards and is CE certified by the manufacturer.

To explore our selection of pre-wired modules please click on the following link: https://www.aandlleisure.co.uk/cbe--c-line-modules--back-boxes-b1fbanproducts40curpage-2-40-c.asp

To explore our selection of faceplates, please click on the following link: https://www.aandlleisure.co.uk/faceplates-support-frames--surrounds-32-c.asp
